Petrofac – PETRO RABIGH PROJECT Rabigh II-IK

Location: Rabigh

Client: Petrofac

Contractor: Alzamil Metal Works Factory

Commencement: 28/07/2013

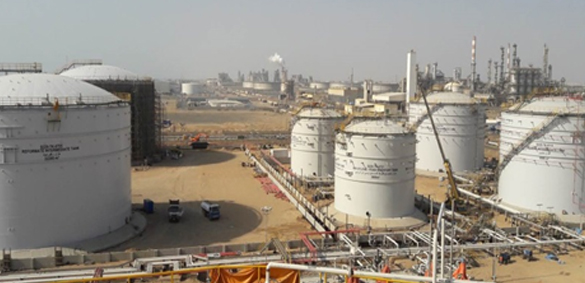

Scope: PRE-FABRICATION, ERECTION, TESTING & ABRASIVE BLASTING, PAINTING AND INSULATION OF STORAGE STEEL TANKS SUPPORTED FIXED ROOF TANKS:

• Fire Water tanks: Dia 31.93m x Height 18.5m, Dome roof. (QTY 2)
• Wash Down Utility Tank: Dia 19.35m x 12.8m, Dome roof. (QTY 1)
• Slop Oil Tank: Dia 11m x Height 15m (QTY 1)
• Contaminated Surface water Tank: Dia 41.94m x 20.75m, Dome roof. (QTY 1)
• Potable Water tanks: Dia 6.75m x Height 7.85m, Cone roof.(QTY 2)
• Extender Oil-1 FEED tanks: Dia 11.61m x 13.05m, Cone roof. (QTY 2)
• Cumene Waste Tank: Dia 4m x 4.6m, Cone roof. (QTY 1)

SUPPORTED FIXED ROOF WITH INTERNAL FLOATING ROOF:

• Aqueous Waste Tank: Dia 14m x 14M, Cone roof. (QTY 1)
• ENB FEED tanks: Dia 13.54m x Height 12.4m. (QTY 2)
• Hexane FEED tanks: Dia 15.48m x Height 13.6m (QTY 2)
• Methanol FEED tanks: 21.28m x Height 16.4m (QTY 2)
• MTBE Import Tank: Dia 34.83m x 19.8m (QTY 1)
• P-XYLENE Product tanks: Dia 45.76m x 20.55m (QTY 3)
• Benzene Product tanks: Dia 29.02m x Height 19.2m (QTY 2)
• Treated Heavy Naphtha Intermed Tank: Dia 41.94m x 23.15m. (QTY 1)
• C9/C10 Aromatics & Reformate Intermediate Tank: Dia 41.94m x 20.1m (QTY 1)
• Toluene Intermediate Tank: Dia 29.02m x Height 18.4m (QTY 1)
• Mixed Xylene /PDEB inventory tanks: Dia 21.28m x Height 14.7m (QTY 2)
• P-Xylene Intermediate Tank: Dia 19.35m x Height 12.5m (QTY 1)
• Recovered Methanol Intermed Tank: Dia 29.02m x 19.15m(QTY 1)
• VAM FEED tanks: Dia 19.35m x Height 12.1m Dome roof. (QTY 2)
